GEM II Ring Cutter Kit
Back to Products
CE Mark

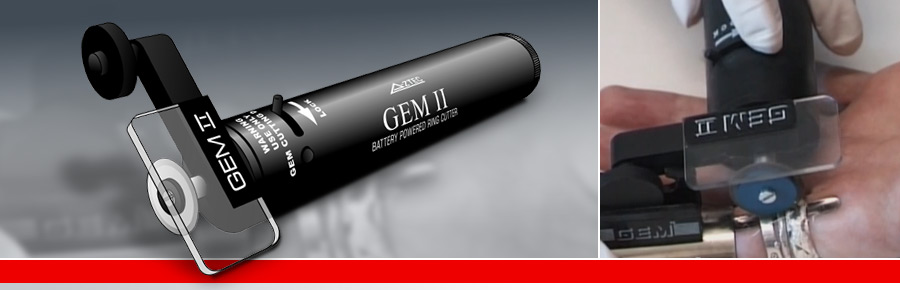

GEM II Battery Powered Ring Cutter Kit with Recharger Unit

Ref: A-Z 300/R

Designed, developed and patented by A-Z Tec Medical Limited, the GEM II Ring Cutter was the first battery powered ring cutter to be commercially available.

A light weight, single hand operated system that is quick, simple and safe to operate, capable of cutting through rings made of extremely hard metals that would be impossible to cut through with a manual ring cutter.

Unlike the manual ring cutter the Gem II ring cutter's uniquely designed cutting disc guide component allows a ring or series of rings (up to 20mm wide and 5mm deep) to be cut through in one single uninteruppted operation.

UK Pat. 2249273
German Pat. G9113614.8

A single hand operated unit which is used in Accident & Emergency Departments, Minor Injury Units and Fire and Rescue services across the U.K and throughout Europe and the Middle East, the GEM II is a light weight, cordless ring cutting device that is capable of cutting effortlessly through just about any material from plastic to titanium rings up to 20 mm wide and 5 mm deep.

For a demonstration on how the GEM II Ring Cutter works watch the instructional video below.

The GEM II Ring Cutter is designed to be used with two different types of ring cutting disc. The A-Z 223 Diamond Cutting Disc is for use on hard metal rings such as, Iron, Steel and Platinum as well as the newer ultra-hard metals which are being used in jewellery such as Tungsten, Titanium and Stainless Steel. For softer metal rings such as gold, silver, brass and copper there is the A-Z 224 Cutting Carbide Disc.

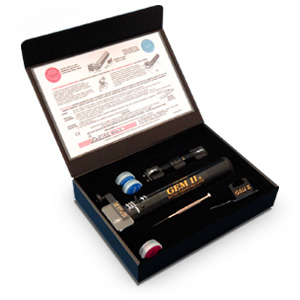

Contents:

GEM II Ring Cutter Kit

For more information on using the GEM II Ring Cutter to cut through Ultra Hard Metals such as Tungsten, Titanium and Stainless Steel, Click Here!

  • GEM II Ring Cutter
  • Finger Guard Unit
  • Battery Cartridge
  • 1 x Diamond Cutting Disc (A-Z 223)
  • 2 x Carbide Cutting Disc (A-Z 224)
  • Battery Recharger Unit
  • Rechargeable Batteries x 6
  • Instructional DVD
  • User Manual

Order Information:

Description:
GEM II Battery Powered Ring Cutter Kitwith Recharger Unit

GEM II Ring Cutter Kit

Order Ref Code:
A-Z 300/R

Replacement Components:

A-Z 223 - Diamond Cutting Disc
(For cutting Iron, Steel, Titanium & Tungsten)
A-Z 224 - Carbide cutting disc
(For cutting Plastic, Copper, Gold)
A-Z 525 - GEM II Finger Guard

Click here now to contact sales or call on: 01303 487891

Download User Manual

User Manual

Download - Cutting Procedures for Ultra Hard Metal Rings

User Manual

Features

  • Efficient, simple and safe to operate.
  • Cuts through materials that would take a manual ring cutter a lon time or even prove impossible.
  • Flexible finger guard permits ease of insertion under ring or series of rings.
  • Replacing cutting disc requires no technical expertise or specialised tools.
  • Powered by 4 standard AA size alkaline or re-chargeable batteries.

Specification

  • Motor Re 280/3 Dry Bearing Weight: 44 gms
  • Hand Piece Weight: 127 gms
  • Power Source: 6 volt DC (4xAA) Batteries
  • No Load Speed: 3 v 8,800 rpm / 6 v 16,000 rpm
  • Torque: 3 v 63 gcm / 6 v 120 gcm
  • Stall Torque: 3 v 126 gcm / 6 v 240 gcm
  • Sound Pressure: 61.08 dB (A)
  • Sound Power: 73.58 dB (A)
  • Vibration Levels: 3.2 m/s2
